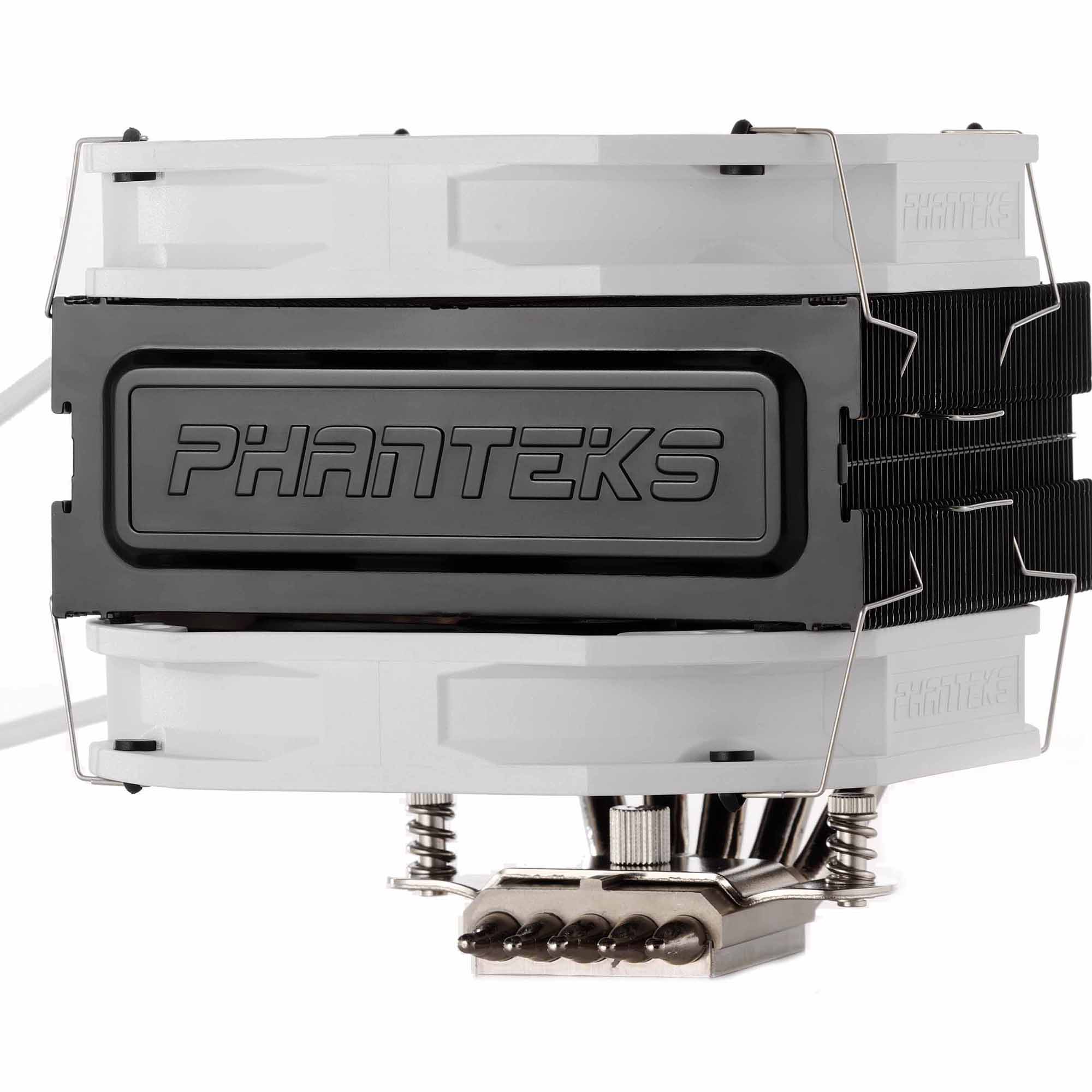

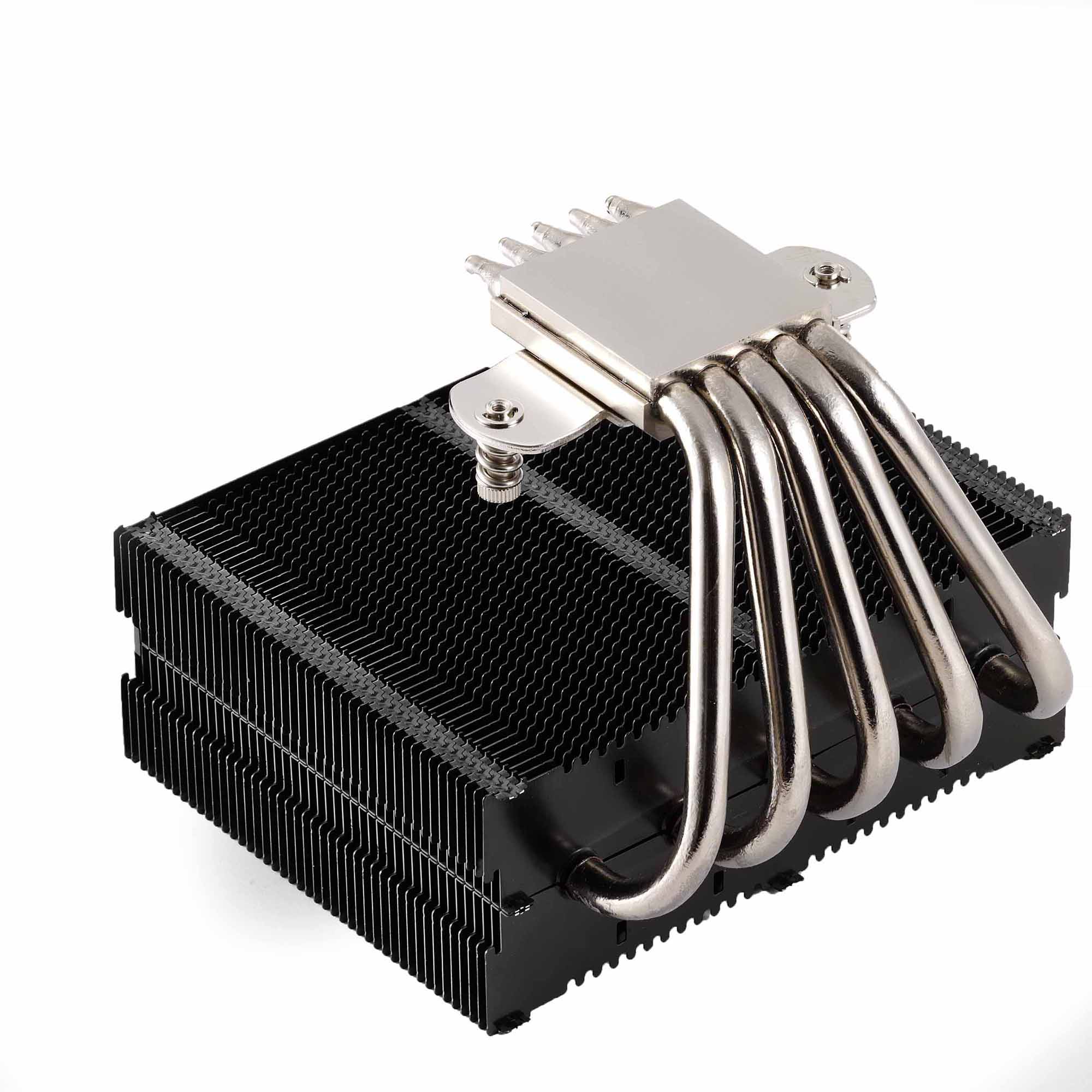

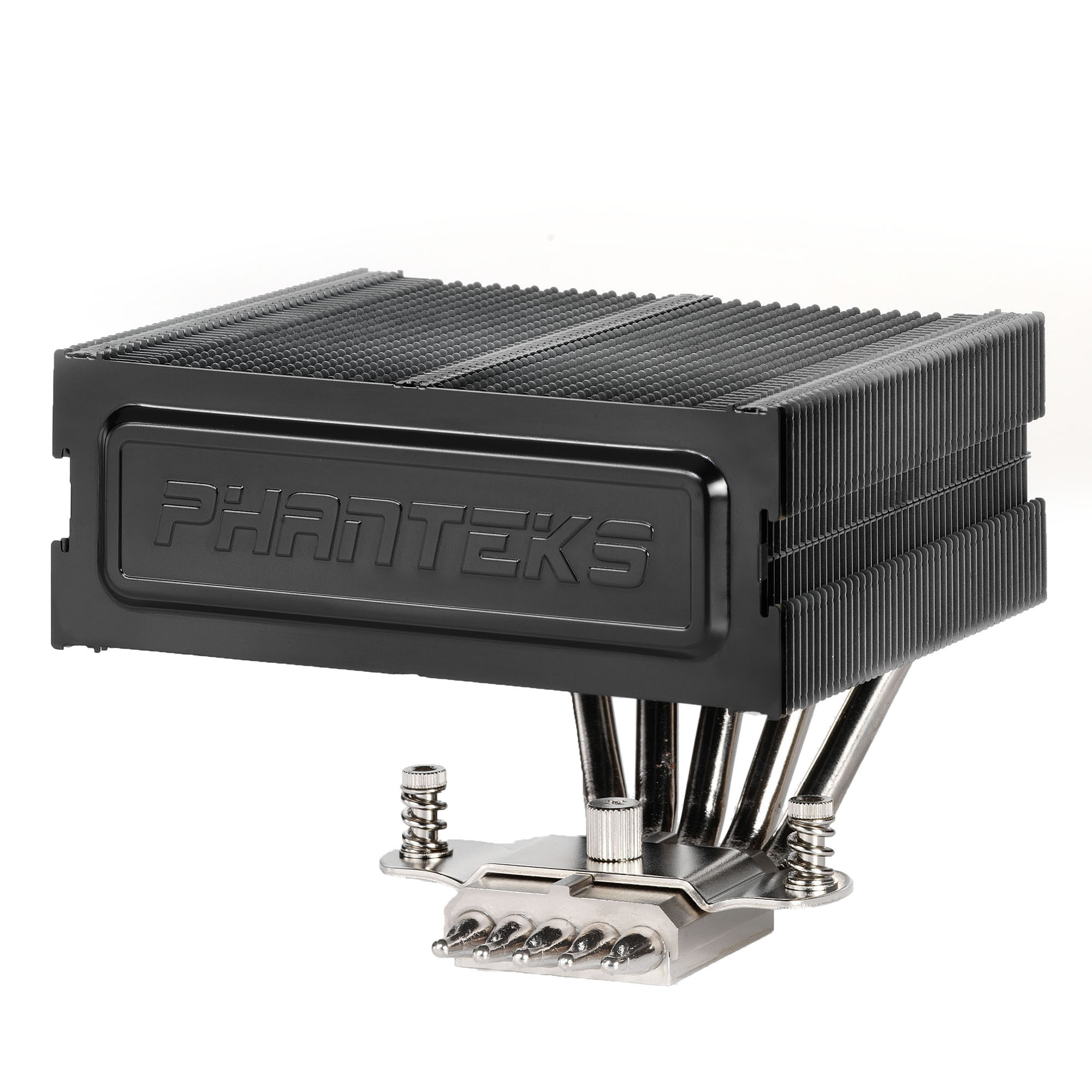

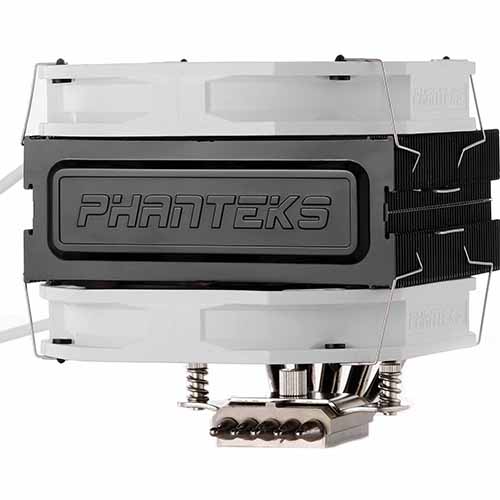

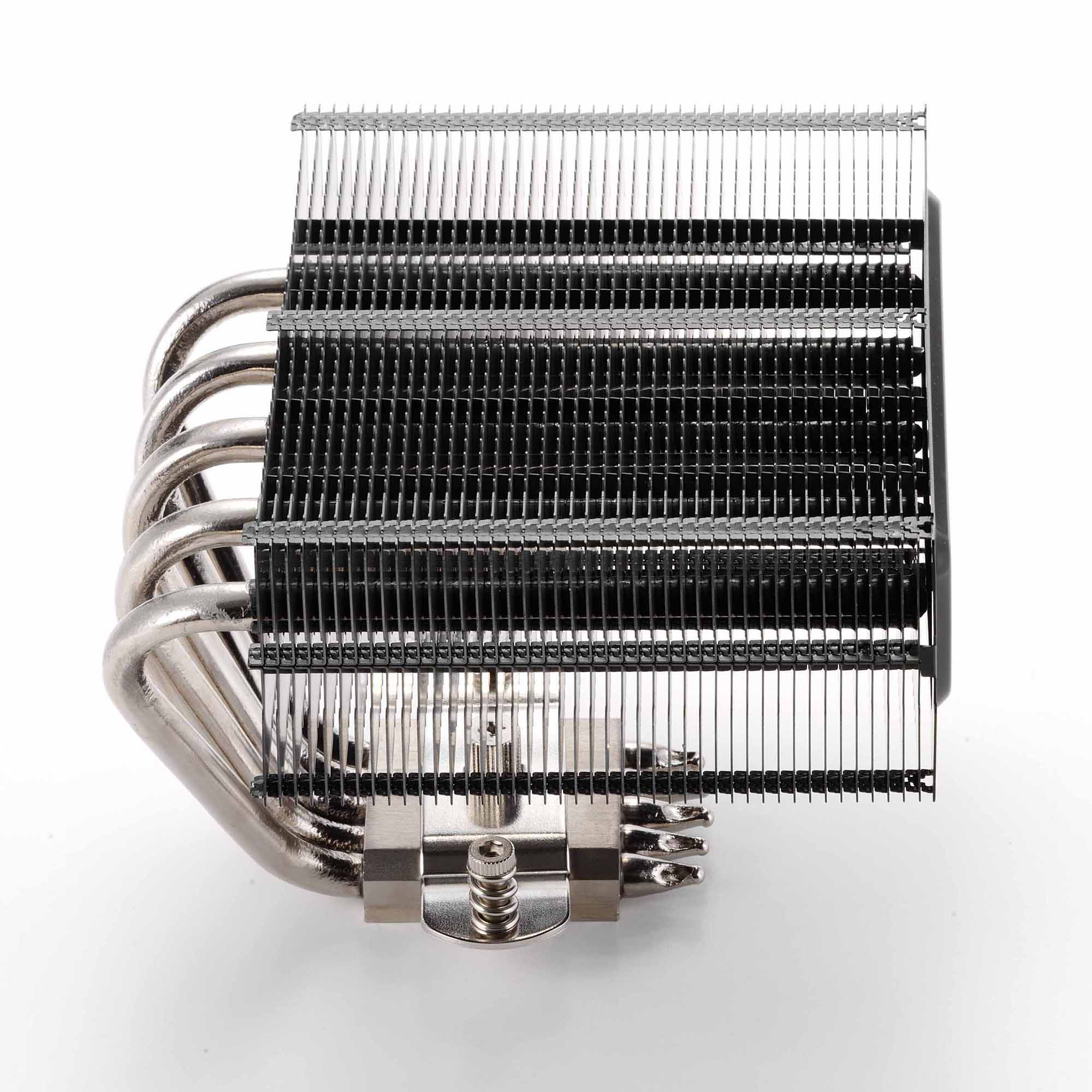

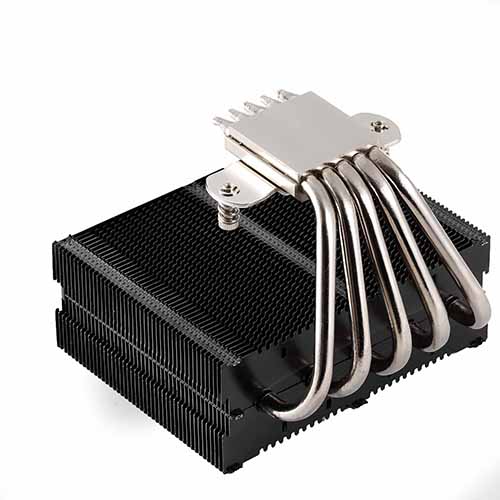

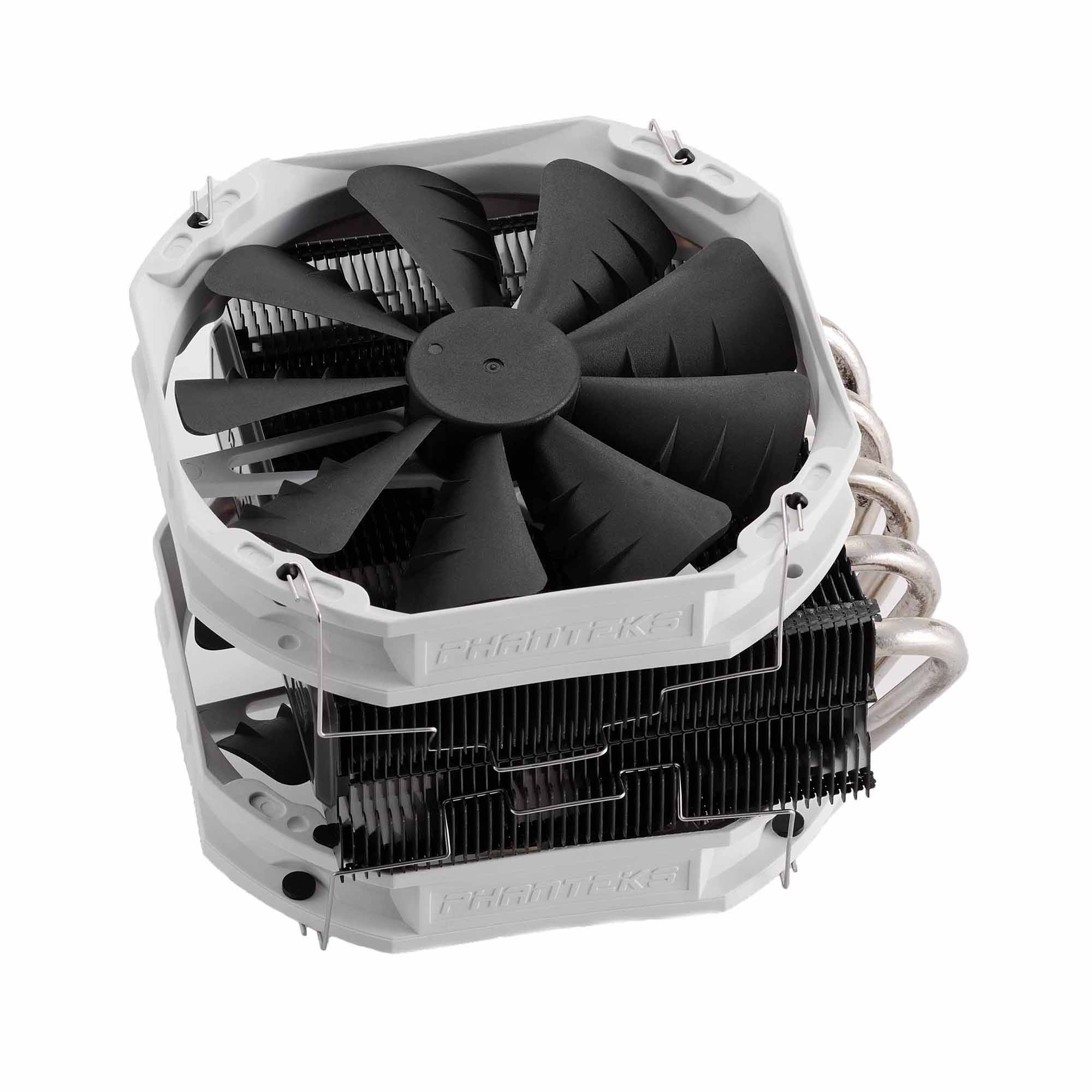

Phanteks PH-TC14CS, a single tower C-Type thermal radiator design using the latest aerospace technology. By incorporating P.A.T.S and C.P.S.C Technologies to the design, PH-TC14CS enhances thermal conductivity and creates an opportunity for greater overclocking. Combined with two Phanteks PH-F140TS Premium 風扇 with PWM functionality, max performance or silent operation is attainable.
黑色 | BLUE | 白色 | 紅色 | |
型號: | PH-TC14CS_BK | PH-TC14CS_BL | PH-TC14CS | PH-TC14CS_RD |
UPC Code: | 886523000181 | 886523000068 | 886523000051 | 886523000143 |
材料 |
Copper (Base and heat-pipes), Nickel Plated Aluminium (Cooling fins and Top Cover) with P.A.T.S and C.P.S.C. |
|||
風扇型號 |
PH-F140 Premium Fan with PWM Adapter |
|||
產品配件 |
1x PH-TC14CS Heatsink 2x PH-F140TS Premium 風扇 SoliSku Mounting Kits for Intel LGA 2011/1155/1156/1366/775 and AMD FM1/AM3+/AM3/AM2+/AM2 (stock back-plate required) 1x PWM External Adapter(Pulse Width Modulation) 1x Hex Wench 1x Y-Fan Splitter 1x PH-NDC Thermal Compound Phanteks PH-TC14CS User’s Manual (English/Spanish and German/French) |
|||
PH-F140 Fan 配件 | 4x Rubber Bars 8x Fan Clip Adapters 4x Fan Wire Clip |
|||
產品保固 |
5 Years |
Heatsink Dimensions without 風扇 |
143.8 x 140 x 112mm (LxWxH) |
|||
Heatsink Dimensions with Single Fan |
160 x 151 x 112mm (LxWxH) |
|||
Heatsink Dimensions with Dual Fan |
160 x 151 x 140.5mm (LxWxH) |
|||
Heatsink Weight without 風扇 |
600g |
|||
Heatsink Weight with 風扇 |
750/900g (Single/Dual) |
